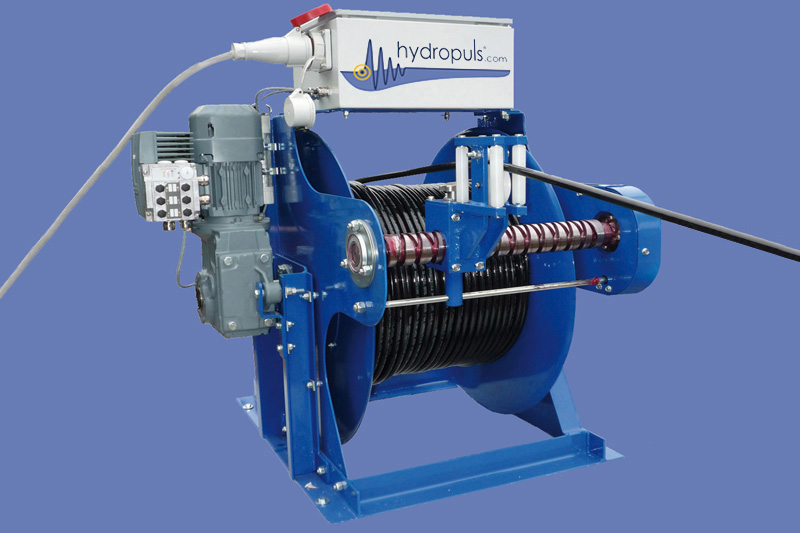

Electric hose reel
![Winde-500m_8](/wp-content/uploads/2016/02/Winde-500m_8.jpg)
|
- high pressure hose, up to 800 m length
- spooling system
- programmable range of action
- depth counter
- Vmax 20 m/min
|

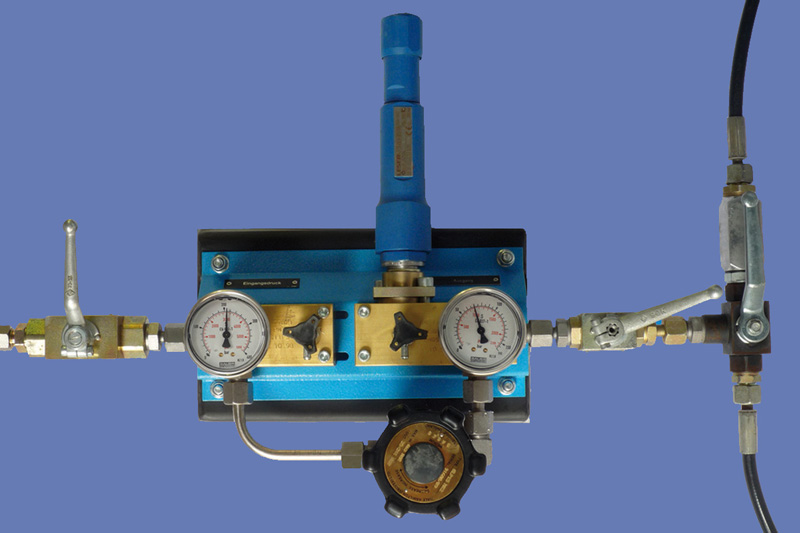

Pressure reducer
![Manometer-1](/wp-content/uploads/2016/03/Manometer-1.jpg)
|
- various models
- connects with all sizes of threads
- stationary solution and carrying case
- 200 bar/100 bar; 300 bar/100 bar;
- up to 450 bar
|

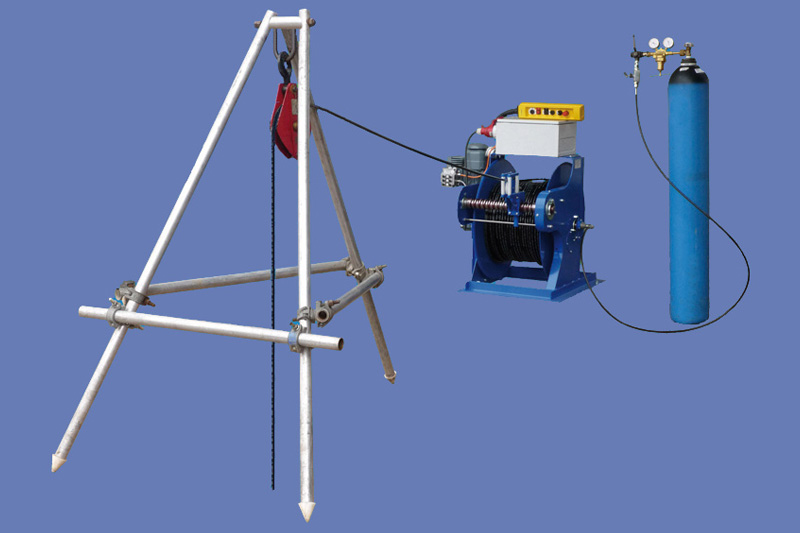

Tripod with pulley
![500m Winde Zylinder Dreibock-3](/wp-content/uploads/2016/03/500m-Winde-Zylinder-Dreibock-3.jpg)
|
- Material: aluminium
- max. pulley load: 2 t
|
High pressure hose
![Schlauch_1-6](/wp-content/uploads/2016/03/Schlauch_1-6.jpg)
|
- OD: 10 mm
- Pmax: 325 bar
- OD: 14 mm
- Pmax: 150 bar
- acid-resisting
|

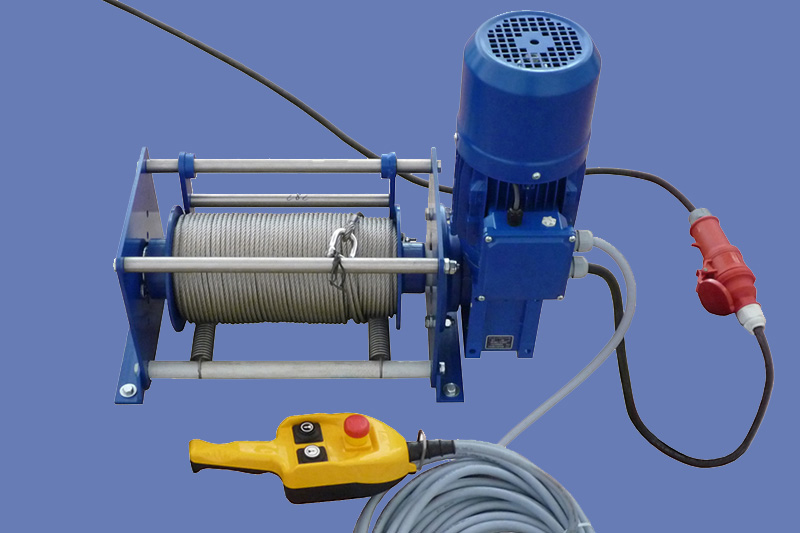

Cable winch
![P1070025-Stahlseilwinde-6](/wp-content/uploads/2016/03/P1070025-Stahlseilwinde-6.jpg)
|
- for DN 6 – 14 mm stainless steel cable
- length: 150 m up to max. 800 m
- tension force: 600 kg up to max. 3000 kg
|
